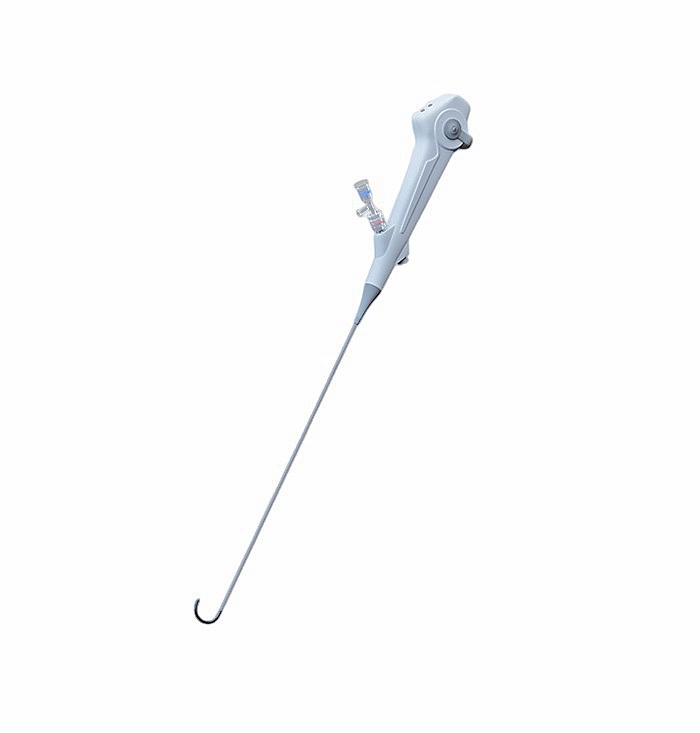

Digital Flexible Ureteroscope, electronic renal pelvis endoscope device for urinary surgery

Select the number of specifications

Item No.

33101-33104

Please check the product information you want!

Specifications select

Download Annex

Product Detail

Product Name: Digital Flexible Ureteroscope, electronic renal pelvis endoscope device for urinary surgery

Specification:

Cat.NO.	Field of View	Direction of view	Depth of Field	Insertion Tube Outer Diameter	Instrument Channel Inner Diameter	Working Length	Deflection of Distal Tip
331 01 00 2	120o	0o	3~50mm	9.0Fr	3.6Fr(1.2mm)	650mm	275o UP 275o DOWN
331 02 00 2	120o	0o	3~50mm	7.5Fr	3.6Fr(1.2mm)	650mm	275o UP 275o DOWN
331 03 00 2	120o	0o	3-50mm	8.5Fr	3.6Fr(1.2mm)	650mm	275o UP 275o DOWN
331 04 00 2	120o	0o	3-50mm	6.5Fr	3.6Fr(1.2mm)	650mm	275o UP 275o DOWN

Feature:

The disposable electronic ureteroscope is designed to provide image solution for endoscopy and endoscopic surgery, and perform procedures in the urinary tract and interior of the kidney using appropriate accessory devices.

Efficiently Irrigation & Suction.
High Stone Free Rate.
Low Complications.
Safety Intraluminal Pressure.
160K Pixels High Resolution Image
Same Dual LED Design
Unique Tip design

No comment
