65ml MR saline contrast medium Injector system, KVO Dual syringe magnetic resonance imaging enhanced injection machine Zenith-C60

Zenith MR Injector withnon-magnetic structure can meet all your need in CE-MR imaging and havemultiple helpful features.C60 is compatible with magnetic force up to 3T MRimaging system.

Select the number of specifications

Syringe Volume

65ml/65ml

Model No.

Zenith C60

Please check the product information you want!

Specifications select

Download Annex

Product Detail

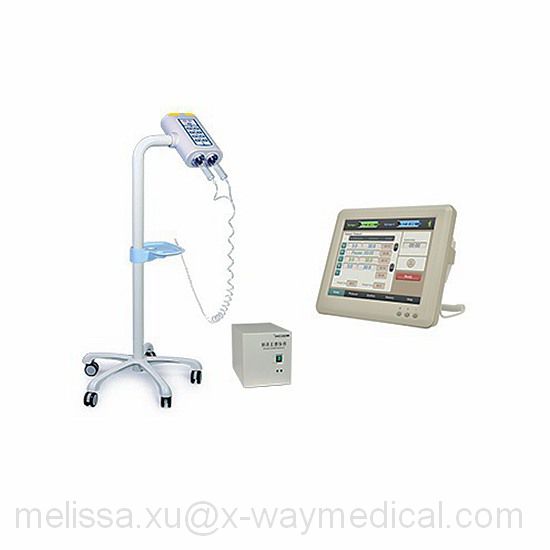

Product Name: 65ml MR saline contrast medium Injector system, KVO Dual syringe magnetic resonance imaging enhanced injection machine Zenith-C60

Ref No. Zenith C60

Type. MRI Dual Head 2-65ml, Floor Pededal

Feature:

Zenith MR Injector withnon-magnetic structure can meet all your need in CE-MR imaging and havemultiple helpful features.C60 is compatible with magnetic force up to 3T MRimaging system.

Benefits of Dual Syringe

●Delivering saline after the injection of contrast medium, which enhance the quality of imaging.
●KVO procedure prevent the position of injection from blood coagulation.

Characteristic:
●Excellent performance, 8 Amp. hour battery offers longer scan times between ges
●Independent KVO procedure
●On-screen tutorial for the simplification of set-up procedure
●Flexible power management with Integrated Continuous Battery Charger option allows either full, non-tethered battery operation or continuous battery ging through AC power connection - switch to either battery or power source in seconds
●Mobile configuration available for MR trailers
●Multi-phase injection control

Specification:
●Flow Rate programmable:0.1 to 10.0 ml/sec in 0.1 ml/sec increments
●Pressure Limits: Factory set not exceed 350psi
●Injection Capabilities:1 to 8 phases

Item	Description
Electrical Requirements:	Arm Controller: Either electric network or battery Electric network: a.c.198~242V, 50/60 Hz, 200VA Battery: 8Ah Lithium polymer battery Console: Input DC12V, 2A
Operation Interface	Selectable in English, French, German and Chinese
Flow Rate	0.1 ml/sec. to 10 ml/sec. in 0.1 ml/sec. increments
Syringe Capacity	65ml
Volume	0.1 ml to syringe capacity in 0.1 ml increments
