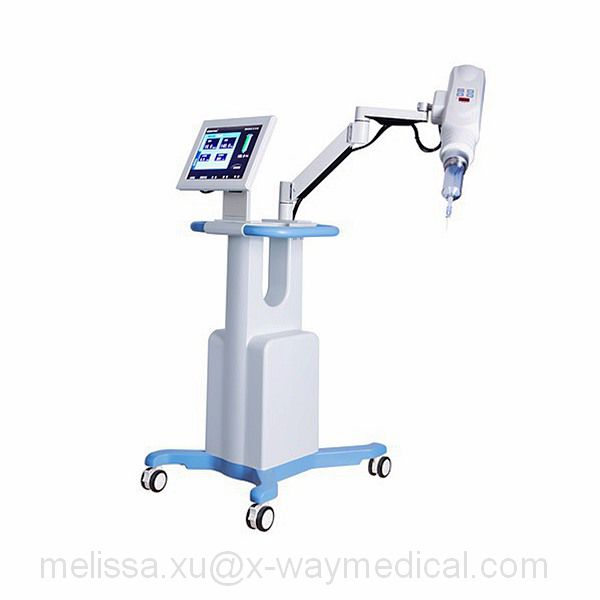

150ml 1200psi DSA Angiography Contrast Media Injector, coronary angiography, ventriculograms and aortograms digital gastrointestinal diagnosis peripheral blood-vessel imaging multiple imaging injection system Zenith H15
150ml 1200psi DSA Angiography Contrast Media Injector, coronary angiography, ventriculograms and aortograms digital gastrointestinal diagnosis peripheral blood-vessel imaging multiple imaging injection system Zenith H15

150ml 1200psi DSA Angiography Contrast Media Injector, coronary angiography, ventriculograms and aortograms digital gastrointestinal diagnosis peripheral blood-vessel imaging multiple imaging injection system Zenith H15

Zenith Angiography Injector is an injector for multiple imaging applications: coronary angiography, ventriculograms and aortograms, etc. It can also be used in digital gastrointestinal diagnosis for peripheral blood-vessel imaging. It can inject fluid during CT contrast-enhanced scan as well.

150ml 1200psi DSA Angiography Contrast Media Injector, coronary angiography, ventriculograms and aortograms digital gastrointestinal diagnosis peripheral blood-vessel imaging multiple imaging injection system Zenith H15

Select the number of specifications

Syringe Volume

150ml

Model No.

DSA Zenith H15

Please check the product information you want!
Specifications select

Product Detail

Product Name:   150ml 1200psi DSA Angiography Contrast Media Injector, coronary angiography, ventriculograms and aortograms digital gastrointestinal diagnosis peripheral blood-vessel imaging multiple imaging injectio


Ref No.    Zenith H15

Type.   DSA Single Head 150ml, Floor Pededal


Feature:

Zenith Angiography Injectoris an injector for multiple imaging applications: coronary angiography,ventriculograms and aortograms, etc. It can also be used in digitalgastrointestinal diagnosis for peripheral blood-vessel imaging. It can injectfluid during CT contrast-enhanced scan as well.



Characteristic:

●Largecolor touch-screen makes the operation more intuitive and makes the injectionplanning and   process controlling easier
●Clearand perspicuous operate screen
●Multiple,safe and reliable ports work well with different imaging equipements



Specification:
Syringe Capacity：150ml

Flow Rate programmable:0.1 to 50.0 ml/sec
pressure Limits programmable：0 to 1200psi
Injection Capabilities：1 to 8 phases


Item

Description

Electrical   Requirements

a.c.220V,   50Hz, 800VA

Console

Color   Touch Screen

Operation   Interface

Selectable   in English, French, German and Chinese

Flow   Rate

0.1   to 50 ml/sec. in 0.1 ml/sec. increments

Volume

0.1   ml to max. syringe capacity

Rise   Time

0.1~1.0   sec., in 0.1 ml increments

Syringe   Capacity

150ml



No comment

Previous : 65ml MR saline contrast medium Injector system, KVO Dual syringe magnetic resonance imaging enhanced injection machine Zenith-C60 Next : 100ml DSA Peripheral Blood-vessel Injector, Automatic angiography gastrointestinal C-arm CT enhancement scan contrast agent injection system Zenith D10
Product Detail

Product Name:   150ml 1200psi DSA Angiography Contrast Media Injector, coronary angiography, ventriculograms and aortograms digital gastrointestinal diagnosis peripheral blood-vessel imaging multiple imaging injectio


Ref No.    Zenith H15

Type.   DSA Single Head 150ml, Floor Pededal


Feature:

Zenith Angiography Injectoris an injector for multiple imaging applications: coronary angiography,ventriculograms and aortograms, etc. It can also be used in digitalgastrointestinal diagnosis for peripheral blood-vessel imaging. It can injectfluid during CT contrast-enhanced scan as well.



Characteristic:

●Largecolor touch-screen makes the operation more intuitive and makes the injectionplanning and   process controlling easier
●Clearand perspicuous operate screen
●Multiple,safe and reliable ports work well with different imaging equipements



Specification:
Syringe Capacity：150ml

Flow Rate programmable:0.1 to 50.0 ml/sec
pressure Limits programmable：0 to 1200psi
Injection Capabilities：1 to 8 phases


Item

Description

Electrical   Requirements

a.c.220V,   50Hz, 800VA

Console

Color   Touch Screen

Operation   Interface

Selectable   in English, French, German and Chinese

Flow   Rate

0.1   to 50 ml/sec. in 0.1 ml/sec. increments

Volume

0.1   ml to max. syringe capacity

Rise   Time

0.1~1.0   sec., in 0.1 ml increments

Syringe   Capacity

150ml



150ml 1200psi DSA Angiography Contrast Media Injector, coronary angiography, ventriculograms and aortograms digital gastrointestinal diagnosis peripheral blood-vessel imaging multiple imaging injection system Zenith H15
Zenith Angiography Injector is an injector for multiple imaging applications: coronary angiography, ventriculograms and aortograms, etc. It can also be used in digital gastrointestinal diagnosis for peripheral blood-vessel imaging. It can inject fluid during CT contrast-enhanced scan as well.
