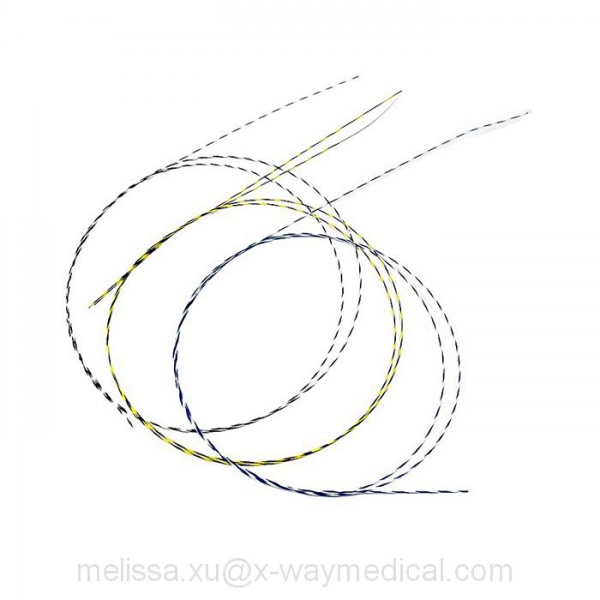

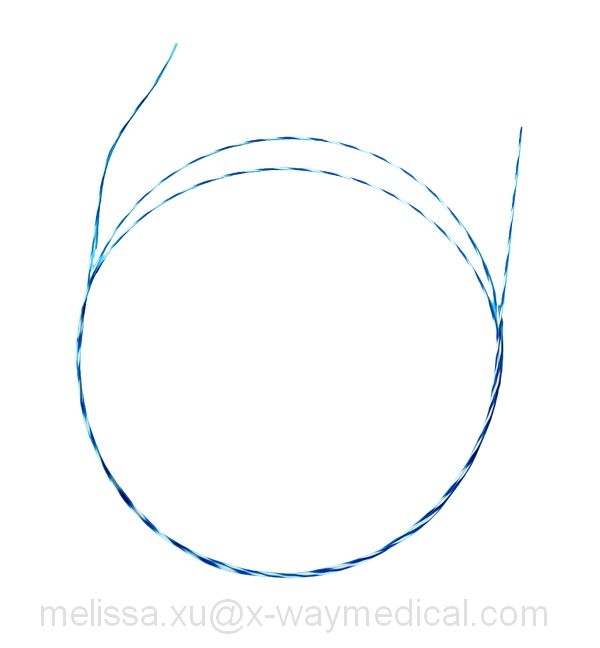

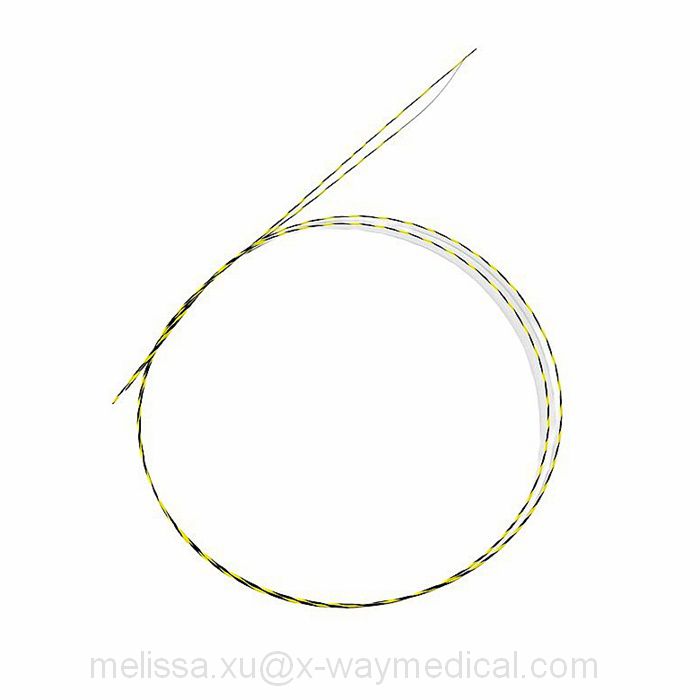

450cm Endoscopic retrograde cholangiopancreatography ERCP guidewires, PTFE Nitinol X-RAY opaque zebra guide wire

450cm Endoscopic retrograde cholangiopancreatography ERCP guidewires, PTFE Nitinol X-RAY opaque zebra guide wire

450cm Endoscopic retrograde cholangiopancreatography ERCP guidewires, PTFE Nitinol X-RAY opaque zebra guide wire

450cm Endoscopic retrograde cholangiopancreatography ERCP guidewires, PTFE Nitinol X-RAY opaque zebra guide wire

450cm Endoscopic retrograde cholangiopancreatography ERCP guidewires, PTFE Nitinol X-RAY opaque zebra guide wire

450cm Endoscopic retrograde cholangiopancreatography ERCP guidewires, PTFE Nitinol X-RAY opaque zebra guide wire

450cm Endoscopic retrograde cholangiopancreatography ERCP guidewires, PTFE Nitinol X-RAY opaque zebra guide wire

450cm Endoscopic retrograde cholangiopancreatography ERCP guidewires, PTFE Nitinol X-RAY opaque zebra guide wire

450cm Endoscopic retrograde cholangiopancreatography ERCP guidewires, PTFE Nitinol X-RAY opaque zebra guide wire

In order to perform an endoscopic retrograde cholangiopancreatography (ERCP), guidewires are inserted through the endoscope and positioned in the bile ducts or pancreatic ducts using techniques such as fluoroscopy or CT scan guidance. This enables surgeons to navigate the catheter through narrow passageways and place stents, sphincters, or other devices where needed.

450cm Endoscopic retrograde cholangiopancreatography ERCP guidewires, PTFE Nitinol X-RAY opaque zebra guide wire

Select the number of specifications

Diameter

0.025 - 0.035

Length

150cm -450cm

Please check the product information you want!

Specifications select

Download Annex

Product Detail

Product: 450cm Endoscopic retrograde cholangiopancreatography ERCP guidewires, PTFE Nitinol X-RAY opaque zebra guide wire

Usage:

In order to perform an endoscopic retrograde cholangiopancreatography (ERCP), guidewires are inserted through the endoscope and positioned in the bile ducts or pancreatic ducts using techniques such as fluoroscopy or CT scan guidance. This enables surgeons to navigate the catheter through narrow passageways and place stents, sphincters, or other devices where needed.

Features:

● Opaque rays tip, ensure the good visible under x-ray

● Stripe is helpful to judymet direction and distance

● Superplastic nitinol wire core to prevent the guidewrie kink

● Jacket PTFE, blue and white, yellow and black stripe

● Core meterial: Nitinol

● Dimentions:

OD Range	0.025'' - 0.035''
Length Range	150cm - 450cm
J Radius	Straight

Item No.

Product No.	O.D. (in)	"Working Length(cm)"	Model	With/Without	Color
45.06.22001	0.025	270	0.025in x 270cm	Without spring coil	blue and white
45.06.22002	0.025	450	0.025in x 450cm	Without spring coil	blue and white
45.06.31001	0.032	150	0.032in x 150cm	With spring coil	blue and white
45.06.31002	0.032	260	0.032in x 260cm	With spring coil	blue and white
45.06.41001	0.032	420	0.032in x 420cm	With spring coil	blue and white
45.06.41002	0.035	190	0.035in x 190cm	With spring coil	blue and white
45.06.41003	0.035	270	0.035in x 270cm	With spring coil	blue and white
45.06.41004	0.035	450	0.035in x 450cm	With spring coil	blue and white
45.06.22003	0.025	270	0.025in x 270cm	Without spring coil	yellow and black
45.06.22004	0.025	450	0.025in x 450cm	Without spring coil	yellow and black
45.06.31004	0.032	150	0.032in x 150cm	With spring coil	yellow and black
45.06.31005	0.032	260	0.032in x 260cm	With spring coil	yellow and black
45.06.31006	0.032	420	0.032in x 420cm	With spring coil	yellow and black
45.06.41005	0.035	190	0.035in x 190cm	With spring coil	yellow and black
45.06.41006	0.035	270	0.035in x 270cm	With spring coil	yellow and black
45.06.41007	0.035	450	0.035in x 450cm	With spring coil	yellow and black

No comment

Previous : Intervention Angiography Peripheral vascular guiding catheters, stent balloon placement guide sheath conduit pipe channel Next : 4French 5F 6Fr 7F 16cm 23cm Hydrophilic coating Radial diagnosis guiding catheters artery access Transradial introducer sheath set

Product Detail

Product: 450cm Endoscopic retrograde cholangiopancreatography ERCP guidewires, PTFE Nitinol X-RAY opaque zebra guide wire

Usage:

In order to perform an endoscopic retrograde cholangiopancreatography (ERCP), guidewires are inserted through the endoscope and positioned in the bile ducts or pancreatic ducts using techniques such as fluoroscopy or CT scan guidance. This enables surgeons to navigate the catheter through narrow passageways and place stents, sphincters, or other devices where needed.

Features:

● Opaque rays tip, ensure the good visible under x-ray

● Stripe is helpful to judymet direction and distance

● Superplastic nitinol wire core to prevent the guidewrie kink

● Jacket PTFE, blue and white, yellow and black stripe

● Core meterial: Nitinol

● Dimentions:

OD Range	0.025'' - 0.035''
Length Range	150cm - 450cm
J Radius	Straight

Item No.

Product No.	O.D. (in)	"Working Length(cm)"	Model	With/Without	Color
45.06.22001	0.025	270	0.025in x 270cm	Without spring coil	blue and white
45.06.22002	0.025	450	0.025in x 450cm	Without spring coil	blue and white
45.06.31001	0.032	150	0.032in x 150cm	With spring coil	blue and white
45.06.31002	0.032	260	0.032in x 260cm	With spring coil	blue and white
45.06.41001	0.032	420	0.032in x 420cm	With spring coil	blue and white
45.06.41002	0.035	190	0.035in x 190cm	With spring coil	blue and white
45.06.41003	0.035	270	0.035in x 270cm	With spring coil	blue and white
45.06.41004	0.035	450	0.035in x 450cm	With spring coil	blue and white
45.06.22003	0.025	270	0.025in x 270cm	Without spring coil	yellow and black
45.06.22004	0.025	450	0.025in x 450cm	Without spring coil	yellow and black
45.06.31004	0.032	150	0.032in x 150cm	With spring coil	yellow and black
45.06.31005	0.032	260	0.032in x 260cm	With spring coil	yellow and black
45.06.31006	0.032	420	0.032in x 420cm	With spring coil	yellow and black
45.06.41005	0.035	190	0.035in x 190cm	With spring coil	yellow and black
45.06.41006	0.035	270	0.035in x 270cm	With spring coil	yellow and black
45.06.41007	0.035	450	0.035in x 450cm	With spring coil	yellow and black
